Introduction
The JoyeAuto CarPlay module black screen flickering issue is one of the most common problems reported after installing an aftermarket CarPlay interface system. In many cases, users notice that the original car system continues to work normally—radio, navigation, and OEM display all function correctly—but when switching to CarPlay mode, the screen becomes black, flickers, or shows abnormal visual distortion.
This issue can be frustrating because everything appears correctly installed. However, the JoyeAuto CarPlay module black screen flickering issue is rarely caused by hardware failure. Instead, it is usually related to signal mismatch, installation errors, or configuration issues within the vehicle system integration layer.
This guide provides a detailed breakdown of the JoyeAuto CarPlay module black screen flickering issue, including causes, troubleshooting steps, and technical explanations.
How CarPlay Integration Works in Modern Vehicles

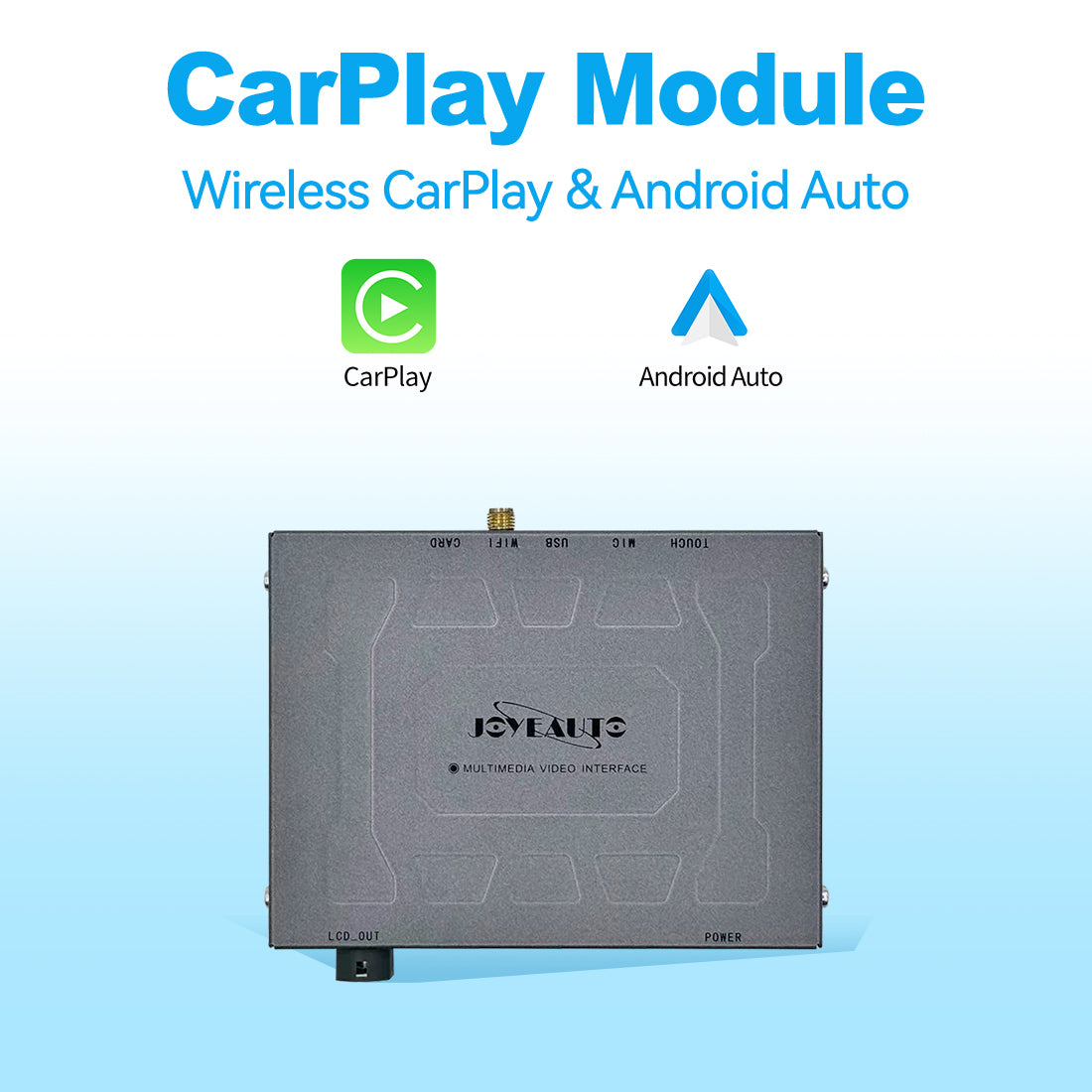

Aftermarket CarPlay modules such as JoyeAuto act as an interface layer between the factory infotainment system and Apple CarPlay. They do not replace the original system but instead inject video and control signals into the OEM display system.
Apple defines CarPlay as a system that allows iPhone functionality to be integrated into a vehicle’s built-in display and controls Apple CarPlay Official.
When the JoyeAuto CarPlay module black screen flickering issue occurs, it usually indicates a breakdown in the video transmission chain or signal conversion layer.
For general reference, modern in-vehicle infotainment systems rely on structured signal processing layers including video input, CANBUS communication, and display switching logic CarPlay Wikipedia.
Main Causes of JoyeAuto CarPlay Module Black Screen Flickering Issue
1. LVDS Signal Instability or Improper Connection
One of the most common causes of the JoyeAuto CarPlay module black screen flickering issue is unstable LVDS signal transmission.
LVDS cables carry high-speed video data between the CarPlay module and the vehicle display. If:
- The cable is loose
- The connector is not fully inserted
- IN/OUT ports are reversed
Then symptoms may include:
- Black screen during CarPlay mode
- Flickering display
- Intermittent signal loss
This is the first checkpoint in diagnosing the JoyeAuto CarPlay module black screen flickering issue.
2. CANBUS Communication Mismatch
CANBUS is responsible for communication between the vehicle system and the CarPlay module.
If CANBUS decoding is incorrect:
- Factory system remains fully functional
- CarPlay switching becomes unstable
- Display flickering or failure occurs
This mismatch is a major contributor to the JoyeAuto CarPlay module black screen flickering issue.
3. Incorrect DIP Switch Configuration
DIP switches determine compatibility between the module and vehicle model.
Wrong configuration may result in:
- Incorrect resolution output
- Display sync failure
- Black screen during switching
Many installation cases of the JoyeAuto CarPlay module black screen flickering issue are resolved simply by correcting DIP switch settings.
You can refer to compatible models here:
JoyeAuto Shop All
4. Resolution or Refresh Rate Mismatch
Different vehicles support different display resolutions and refresh rates. If the module outputs an unsupported format:
- Screen flickers
- Image distorts
- CarPlay fails to stabilize
This technical mismatch is another hidden cause of the JoyeAuto CarPlay module black screen flickering issue.
5. Firmware Compatibility Problems
Outdated firmware may not fully support newer iOS versions or vehicle updates.
Symptoms include:
- Random flickering
- Black screen after switching
- System reboot loop
Firmware mismatch is frequently linked to the JoyeAuto CarPlay module black screen flickering issue, especially after system updates.
Step-by-Step Troubleshooting Guide
Step 1: Check Power Stability
Ensure the module receives stable voltage. Power instability can directly trigger flickering.
Step 2: Inspect LVDS Connection
Reconnect LVDS cables carefully:
- Ensure correct IN/OUT orientation
- Fully seat connectors
- Avoid cable tension or bending
This step resolves many JoyeAuto CarPlay module black screen flickering issue cases immediately.
Step 3: Verify DIP Switch Settings
Match the DIP configuration exactly to your vehicle model.
Step 4: Test Resolution Settings
Switch between available display modes if supported.
Step 5: Perform System Reset
Reset restores factory configuration and clears signal conflicts.
Step 6: Update Firmware
Ensure the module firmware is updated to the latest version for compatibility improvements.
Why Factory System Works Normally
A key diagnostic sign is that the OEM system remains fully functional while the JoyeAuto CarPlay module black screen flickering issue occurs.
This confirms:
- Head unit is not damaged
- Power system is stable
- Display hardware is functional
Therefore, the issue is not within the factory system itself.
The root cause is typically located in:
- Video switching layer
- Signal conversion process
- Module configuration or firmware layer
Internal Product Link
For compatible modules and installation support:
JoyeAuto Shop All Products
Conclusion
The JoyeAuto CarPlay module black screen flickering issue is rarely a hardware defect. In most cases, it is caused by LVDS connection problems, CANBUS mismatch, incorrect DIP switch settings, or firmware incompatibility.
By systematically checking wiring, configuration, and software, most users can resolve the issue without replacing the module.
FAQ
1. Why does my screen flicker after installing JoyeAuto CarPlay module?
Usually due to LVDS instability or resolution mismatch.
2. Is black screen a hardware failure?
Most cases are configuration or wiring related, not hardware failure.
3. Can firmware updates fix flickering issues?
Yes, if caused by compatibility or software bugs.
4. Do I need coding for this issue?
Some vehicles require CANBUS coding depending on system type.
5. What is the fastest fix?
Check LVDS connection and DIP switch settings first.
