What Is the JoyeAuto CarPlay Module Black Screen Issue?
The JoyeAuto CarPlay module black screen issue is one of the most common problems users may encounter after installing an aftermarket CarPlay interface. In some cases, the screen turns black immediately after starting the car, while in others, the factory infotainment system cannot be displayed at all. Fortunately, most black screen problems are related to installation, wiring, or compatibility issues and can be fixed with proper troubleshooting.
Why Does the JoyeAuto CarPlay Module Black Screen Happen?
If you are experiencing a JoyeAuto CarPlay module black screen, there are several possible causes. Understanding these issues can help you restore your factory screen quickly and avoid unnecessary repairs.

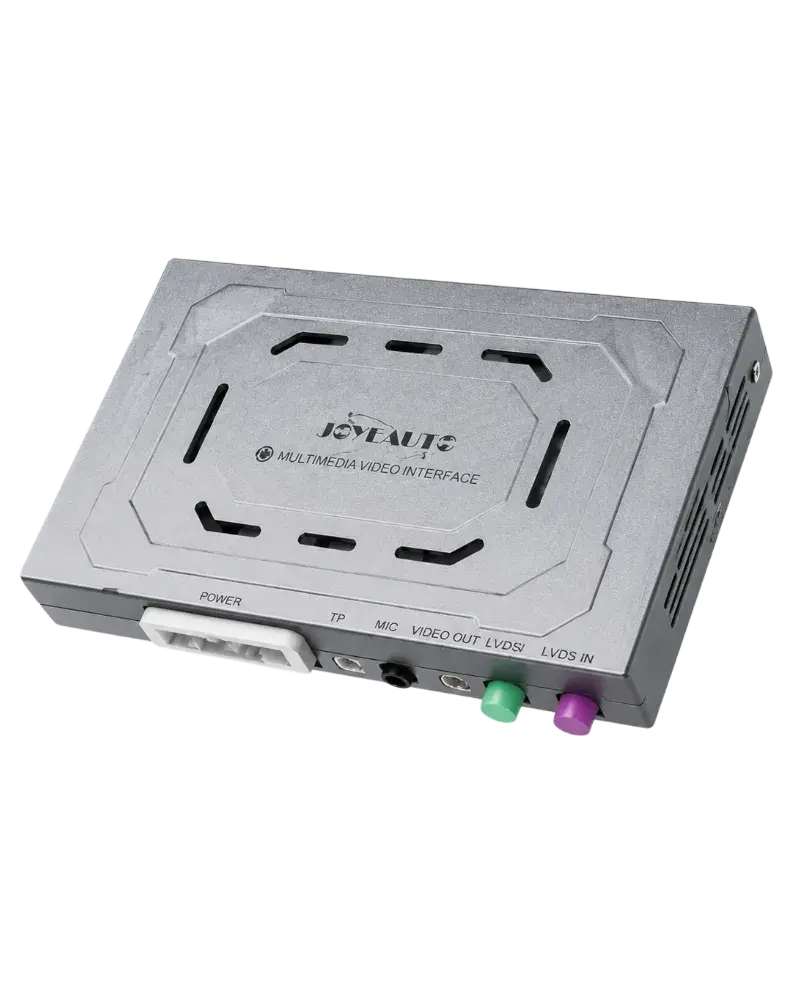

Incorrect LVDS Cable Connection
The LVDS cable is responsible for transmitting video signals between the factory head unit and the display screen.
If:
- The LVDS IN and OUT ports are reversed
- The connector is loose
- The cable is damaged
the JoyeAuto CarPlay module black screen issue may occur immediately after startup.
Always verify:
- OEM LVDS cable → JoyeAuto LVDS IN
- JoyeAuto LVDS OUT → Factory display
A simple cable mistake is often the main reason for a black screen.
Incorrect DIP Switch Settings
Different factory infotainment systems require different DIP switch settings.
For example:
- BMW CIC and NBT use different switch configurations.
- Audi MMI 2G and MMI 3G require different settings.
- Mercedes NTG systems have separate configurations.
If the switches are not configured correctly, the JoyeAuto interface may fail to communicate with the OEM system, causing:
- Black screen after startup
- No signal
- Unable to switch back to the factory interface
Always check the installation guide before modifying the DIP switches.
Factory System Compatibility Issues
Another possible reason for a JoyeAuto CarPlay module black screen is compatibility.
Not every OEM infotainment system supports every CarPlay retrofit module.
Before installation, verify:
- Vehicle model
- Production year
- Factory infotainment version
- Screen size
JoyeAuto provides dedicated CarPlay retrofit solutions for:
- BMW
- Audi
- Mercedes-Benz
- Porsche
- Land Rover
- Lexus
- Toyota
Shop All JoyeAuto Products:
https://joyeautostore.com/collections/all
Choosing a vehicle-specific interface significantly improves stability and reduces the chance of black screen issues.
Power Supply Problems
A JoyeAuto CarPlay module black screen can also be caused by unstable power supply.
Symptoms include:
- Screen flashes and turns black
- Module reboots repeatedly
- Factory system disappears after startup
- Display works intermittently
Check:
- ACC power cable
- Ground wire
- Fuse condition
- Power harness
A stable power source is essential for proper operation.
How Does a CarPlay Retrofit Module Work?
A CarPlay retrofit module acts as a bridge between:
- The factory infotainment system
- The original display screen
It intercepts video and audio signals and displays Apple CarPlay or Android Auto on the factory screen.
According to Apple's official documentation, CarPlay provides a safer and smarter way to use your iPhone while driving.
Apple CarPlay Official Page:
https://www.apple.com/ios/carplay/
Wikipedia also explains the technology behind CarPlay:
https://en.wikipedia.org/wiki/CarPlay
If any part of this communication process is interrupted, a JoyeAuto CarPlay module black screen may occur.
How to Fix JoyeAuto CarPlay Module Black Screen
If your screen goes black after installation, try these troubleshooting steps.
Step 1: Check All Cable Connections
Inspect:
- LVDS cable
- Power harness
- USB cable
- AUX cable
Disconnect and reconnect every cable carefully.
Many JoyeAuto CarPlay module black screen cases are caused by connectors that are not fully inserted.
Step 2: Verify DIP Switch Settings
Compare your switch settings with:
- Vehicle model
- OEM infotainment system
- Installation manual
Even one incorrect DIP switch can cause display problems.
Step 3: Test the Factory System
Disconnect the JoyeAuto module temporarily and reconnect the OEM LVDS cable directly to the screen.
If the factory system works normally, the problem is likely related to:
- Module settings
- Wiring
- Compatibility
Step 4: Restart the Module
Try:
- Turn off the engine.
- Lock the car.
- Wait 3–5 minutes.
- Restart the vehicle.
This process often resolves temporary startup issues.
Step 5: Update the Firmware
Firmware updates can improve:
- Startup stability
- Video signal reliability
- Compatibility
- System responsiveness
If your device supports updates, make sure you are using the latest version.
Conclusion
The JoyeAuto CarPlay module black screen issue is usually caused by incorrect cable connections, DIP switch settings, power supply problems, or compatibility issues. By carefully checking the wiring, verifying the configuration, and following the correct installation procedures, most users can quickly restore both the factory infotainment system and CarPlay functionality.
FAQ
Why does my JoyeAuto CarPlay module black screen after installation?
The most common causes are incorrect LVDS cable connections, DIP switch settings, unstable power supply, or factory system incompatibility.
Can incorrect wiring cause a JoyeAuto CarPlay module black screen?
Yes. Loose or incorrectly connected LVDS cables are one of the leading causes of black screen problems.
Will removing the JoyeAuto module restore the factory system?
In most cases, yes. Reconnecting the OEM LVDS cable directly to the display will restore the original infotainment system.
Can firmware updates fix the black screen issue?
Yes. Firmware updates often improve compatibility and startup stability.
How do I know if my car is compatible with a JoyeAuto CarPlay module?
You can check your vehicle model, production year, and factory infotainment system, or browse compatible products here:
https://joyeautostore.com/collections/all
、
